Rear seats

Second Row Seats

Recline Adjustment

WARNING: Always drive and ride with your seat back upright and the lap belt snug and low across the hips.

WARNING: Reclining the seat back can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the event of a crash.

Lift the handle to adjust seat back rearward or forward. The seat back can also

Lift the handle to adjust seat back rearward or forward. The seat back can also fold forward until it is flat.

Fold-flat seat back

Lift the handle and fold the seat back forward until it is flat.

Lift the handle and fold the seat back forward until it is flat.

Note: For the bench seats, make sure the center safety belt is unbuckled before folding the seat back.

Moving the seats backward and forward (if equipped)

Moving the seats backward and forward (if equipped)

Third Row Seats

Third-Row Seat Access (Manual Seats)

WARNING: Before returning the seat back to its original position, make sure that cargo or any objects are not trapped behind the seat back. After returning the seat back to its original position, pull on the seat back to make sure that it has fully latched.

An unlatched seat may become dangerous in the event of a sudden stop or collision.

WARNING: Do not adjust or release the seat floor latch while vehicle is in motion. Do not operate the vehicle with seats in tumbled position. Always latch the vehicle seat to the floor, whether the seat is occupied or empty. If not latched or if the seat is tumbled, the seat may cause injury during a sudden stop.

Note: Remove items from the second-row seat and make sure that no bulky objects such as purses or briefcases are on the floor in front of the second-row seats before tumbling them.

Note: For second-row bench seats, make sure the center safety belt is unbuckled before folding the seat back.

Note: You may have to move the front-row seat forward to allow the second-row seat to be fully tumbled.

Note: You may have to lower the center head restraint. See Head restraints earlier.

Fold and tumble the second-row seat to access the third row:

1. Fold the outboard head restraint by pulling the head restraint release strap.

1. Fold the outboard head restraint by pulling the head restraint release strap.

2. Lift the handle located on the side of the seat to fold the seat back flat.

2. Lift the handle located on the side of the seat to fold the seat back flat.

3. Lift the handle all the way up until the seat releases from the floor. Rotate

3. Lift the handle all the way up until the seat releases from the floor. Rotate the seat forward to allow access to the third row.

4. To return the seat back to the floor from the tumbled position, rotate the

4. To return the seat back to the floor from the tumbled position, rotate the seat down until you hear it latching to the floor.

5. Lift the seat back toward the rear of the vehicle, and rotate the seat back

5. Lift the seat back toward the rear of the vehicle, and rotate the seat back until you hear a click, locking it in the upright position.

Note: The seat back will not raise if the rear latch hooks are not properly engaged to the floor striker. If the seat back does not raise, then repeat Step 4.

6. Pull the head restraint back up to its normal adjusted position.

Make sure that the rear latch hooks are properly engaged with the floor striker.

Make sure that the rear latch hooks are properly engaged with the floor striker.

Note: Make sure that the seat and seat back are latched securely in position. Keep floor area free of objects that would prevent proper seat engagement.

Third-row seat access (power fold and tumble seat – if equipped)

WARNING: Make sure that the seat is unoccupied when folding it down. Folding the seat while occupied could result in occupant injury or damage to the seat.

Press and hold the control located at the back of the rear door opening to fold

Press and hold the control located at the back of the rear door opening to fold the seat back down and tumble the seat forward for access to the third row.

Third-row seat exit (manual and power fold and tumble seat)

WARNING: Before returning the seat back to its original position, make sure that cargo or any objects are not trapped behind the seat back. After returning the seat back to its original position, pull on the seat back to make sure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision.

WARNING: Do not adjust or release the seat floor latch while vehicle is in motion. Do not operate the vehicle with seats in tumbled position. Always latch the vehicle seat to the floor, whether the seat is occupied or empty. If not latched or if the seat is tumbled, the seat may cause injury during a sudden stop.

Note: You may have to lower the center head restraint. See Head restraints earlier.

1. Fold the outboard head restraint by pulling the head restraint release strap.

1. Fold the outboard head restraint by pulling the head restraint release strap.

2. Pull on the strap located on the back of the second row seat. This will fold

2. Pull on the strap located on the back of the second row seat. This will fold the seat back forward. Pull the strap a second time to tumble the seat forward, allowing easy exit from the third row seat.

3. To return the seat back to the floor from tumbled position, rotate the seat

3. To return the seat back to the floor from tumbled position, rotate the seat down until you hear it latching to the floor.

4. Lift the seat back toward the rear of the vehicle, and rotate the seat back

4. Lift the seat back toward the rear of the vehicle, and rotate the seat back until you hear a click, locking it in the upright position.

Note: The seat back will not raise if the rear latch hooks are not properly engaged to the floor striker.

If the seat back does not raise, then repeat Step 3.

5. Pull the head restraint back up to its normal adjusted position.

Make sure that the rear latch hooks are properly engaged with the floor striker.

Make sure that the rear latch hooks are properly engaged with the floor striker.

Note: Make sure that the seat and seat back are latched securely in position. Keep floor area free of objects that would prevent proper seat engagement.

Folding the Third-Row Manual Seat

1. Remove all objects from the seat and stowage tub

2. Fold the outboard head restraint by pulling the head restraint release strap.

2. Fold the outboard head restraint by pulling the head restraint release strap.

3. From the rear of the vehicle, fold the seat back by pulling and holding the

3. From the rear of the vehicle, fold the seat back by pulling and holding the number 1 strap while pushing the seat back forward. Release the strap once the seat back starts rotating forward.

4. Release the cushion latches by pulling the number 2 strap while pulling on

4. Release the cushion latches by pulling the number 2 strap while pulling on the strap located at the top of the seat back to tumble the seat all the way into the tub in the floor.

Note: Do not use the seat anchors as cargo tie downs.

Note: Do not use the third-row seat back as a load floor when the seat

Note: Do not use the third-row seat back as a load floor when the seat back is folded.

Note: Make sure that the area under the seat is free of objects before stowing it.

Unfolding the third row manual seat

Note: Make sure that there are no objects such as books, purses or briefcases on the load floor before unstowing the seat. Failure to remove all objects from the top of the load floor prior to unstowing it may cause damage to the seat.

Note: Make sure the area under the load floor is free of objects before unstowing it.

1. Unlatch and lift the seat out of the tub in the floor by squeezing and pulling

1. Unlatch and lift the seat out of the tub in the floor by squeezing and pulling up on the handle. Once the seat is at a vertical position, push the seat over, letting it fall onto the latches.

2. To return the seat back to upright position, pull the number 1 strap, then

2. To return the seat back to upright position, pull the number 1 strap, then while holding the number 1 strap, pull the long strap located on the seat back to raise the seat back.
3. Pull the head restraints up to their normal positions.

WARNING: Make sure seat is latched to vehicle floor by pushing and pulling on the seat. If not latched, the seat may cause injury during a sudden stop.

WARNING: Before returning the seat back to its original position, make sure that cargo or any objects are not trapped behind the seat back. After returning the seat back to its original position, pull on the seat back to make sure that it has fully latched.

An unlatched seat may become dangerous in the event of a sudden stop or crash.

WARNING: Do not drive the vehicle when the third-row seat is rotated backwards.

WARNING: Do not drive the vehicle when the third-row seat is rotated backwards. During a sudden stop, the safety belts are not functional in this position and the third-row seat can rapidly tip back to the forward position, all of which may result in serious injury.

Note: Do not use seat in this position or damage to seat may occur.

PowerFold® Third-Row Seats (If Equipped)

Note: The third-row seat includes obstacle detection that allows the seat to stop and reverse direction if it hits an obstacle so that the obstacle can be removed.

Note: Pressing a different button while the power seat feature is already being performed may cause the first selected seat movement to be cancelled. Allow the first seat movement to be completed before pressing a button for another function.

Note: Make sure that there are no objects such as books, purses or briefcases on the load floor before unstowing the seat. Failure to remove all objects from the top of the load floor prior to unstowing it may cause damage to the seat.

Note: In order to allow the seat to complete the stowed position, do not place objects under the seat before stowing. Remove all objects from the seat and stowage tub.

Note: In the unlikely event that the third-row power seat stops prematurely or travels to an unexpected position, press the FOLD button (C) to reset the seat and return it to a normal position.

These seats feature a power one-touch operation that allows you fold and stow the seats.

• The power fold seats work only when the transmission selector lever is in position P and the liftgate is open.
• If the ignition is off and the feature is still running, the battery saver will turn it off after 10 minutes. Press unlock on the remote entry key transmitter to reactivate the power seats or unlock it with the keyless entry keypad. See the Keys and Remote Control chapter.

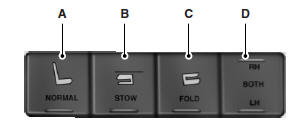

The third-row power seat buttons are located behind the third- row seats on the left-hand quarter trim panel.

A. NORMAL: Press to return the seat to the normal seating position.

A. NORMAL: Press to return the seat to the normal seating position.
B. STOW: Press to stow the seat into the tub floor.
C. FOLD: Press to fold down the seat back.
D. RH / BOTH / LH: Press to select the normal, stow and fold modes to activate the right-hand seat, the left-hand seat or both.
