Capacities and Specifications

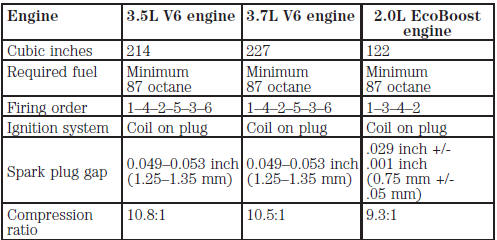

Engine specifications

Engine drivebelt routing

Engine drivebelt routing

3.5L/3.7L V6 engine

1. Short drivebelt is on first pulley groove closest to engine.

1. Short drivebelt is on first pulley groove closest to engine.
2. Long drivebelt is on second pulley groove farthest from engine.

2.0L EcoBoost engine

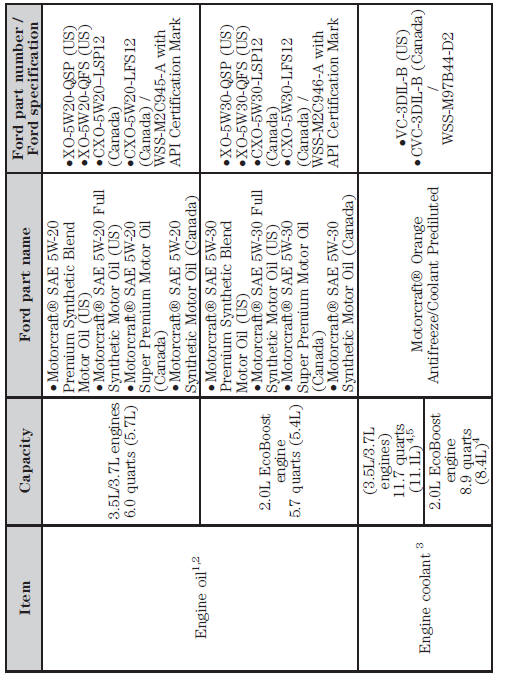

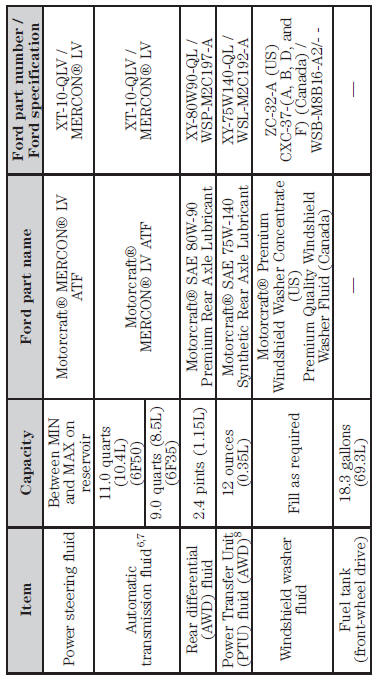

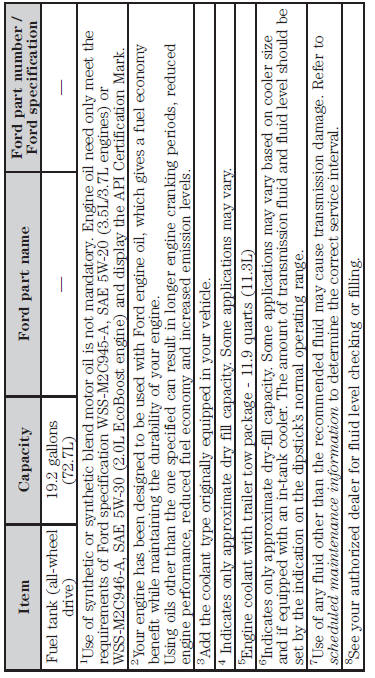

Part numbers
