Front passenger sensing system
WARNING: Even with Advanced Restraints Systems, children 12 and under should be properly restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.
WARNING: Sitting improperly out of position or with the seat back reclined too far can take off weight from the seat cushion and affect the decision of the front passenger sensing system, resulting in serious injury or death in a crash.
Always sit upright against your seat back, with your feet on the floor.
WARNING: To reduce the risk of possible serious injury: Do not stow objects in seat back map pocket or hang objects off seat back if a child is in the front passenger seat.
Do not place objects underneath the front passenger seat or between the seat and the center console.
Check the passenger airbag off or pass airbag off indicator lamp for proper airbag status.
Failure to follow these instructions may interfere with the passenger seat sensing system.
WARNING: Any alteration or modification to the front passenger seat may affect the performance of the front passenger sensing system which could seriously increase the risk of injury or death.
This system works with sensors that are part of the front passenger’s seat and safety belt to detect the presence of a properly-seated occupant and determine if the front passenger’s frontal airbag should be enabled (may inflate) or not.
The front passenger sensing system uses a passenger airbag status indicator which will illuminate indicating that the front passenger frontal airbag is either ON (enabled) or OFF (disabled). The indicator lamp is located in the center stack of the instrument panel.
Note: The passenger airbag status indicator OFF and ON lamps will illuminate for a short period of time when the ignition is first turned on to confirm it is functional.

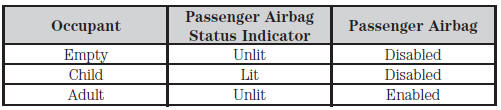

The front passenger sensing system is designed to disable (will not inflate) the front passenger’s frontal airbag when the front passenger seat is unoccupied, or a rear facing infant seat, a forward-facing child restraint, or a booster seat is detected. Even with this technology, parents are STRONGLY encouraged to always properly restrain children in the rear seat. The sensor also turns off the passenger front airbag and seat-mounted side airbag when the passenger seat is empty.
• When the front passenger sensing system disables (will not inflate) the front
passenger frontal airbag, the passenger airbag status indicator will illuminate
the OFF lamp and stay lit to remind you that the front passenger frontal airbag
is disabled.
• If the child restraint has been installed and the passenger airbag status indicator
illuminates the ON lamp, then turn the vehicle off, remove the child restraint from
the vehicle and reinstall the restraint following the child restraint manufacturer’s
instructions.
The front passenger sensing system is designed to enable (may inflate) the front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the front passenger seat.
• When the front passenger sensing system enables the front passenger frontal airbag (may inflate), the passenger airbag status indicator will illuminate the ON lamp and remain illuminated.
If a person of adult size is sitting in the front passenger’s seat, but the passenger airbag status indicator OFF lamp is lit, it is possible that the person isn’t sitting properly in the seat. If this happens:
• Turn the vehicle off and ask the person to place the seat back in the full
upright position.
• Have the person sit upright in the seat, centered on the seat cushion, with the
person’s legs comfortably extended.
• Restart the vehicle and have the person remain in this position for about two
minutes. This will allow the system to detect that person and enable the passenger’s
frontal airbag.
• If the passenger airbag status indicator OFF lamp remains lit even after this,
the person should be advised to ride in the rear seat.
Note: When the passenger airbag status indicator OFF lamp is illuminated, the passenger side airbag (seat mounted) may be disabled to avoid the risk of airbag deployment injuries.
After all occupants have adjusted their seats and put on safety belts, it’s very important that they continue to sit properly. A properly seated occupant sits upright, leaning against the seat back, and centered on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.
If you think that the state of the passenger airbag status indicator lamp is incorrect, check for the following:
• Objects lodged underneath the seat
• Objects between the seat cushion and the center console
• Objects hanging off the seat back
• Objects stowed in the seat back map pocket
• Objects placed on the occupant’s lap
• Cargo interference with the seat
• Other passengers pushing or pulling on the seat
• Rear passenger feet and knees resting or pushing on the seat
The conditions listed above may cause the weight of a properly seated occupant to be incorrectly interpreted by the front passenger sensing system. The person in the front passenger seat may appear heavier or lighter due to the conditions described in the previous list.
To know if the front passenger sensing system is operating properly, see Crash Sensors and Airbag Indicator later in this chapter.
If the airbag readiness light is lit, do the following:
The driver and adult passengers should check for any objects that may be lodged underneath the front passenger seat or cargo interfering with the seat.
If objects are lodged or cargo is interfering with the seat; please take the following steps to remove the obstruction:
• Pull the vehicle over.
• Turn the vehicle off.
• Driver and adult passengers should check for any objects lodged underneath the
front passenger seat or cargo interfering with the seat.
• Remove the obstruction(s) (if found).
• Restart the vehicle.
• Wait at least two minutes and verify that the airbag readiness light in the instrument
cluster is no longer illuminated.
• If the airbag readiness light in the instrument cluster remains illuminated, this
may or may not be a problem due to the front passenger sensing system.
Do not attempt to repair or service the system. Take your vehicle immediately to an authorized dealer.
If it is necessary to modify an advanced front airbag system to accommodate a person with disabilities, contact the Ford Customer Relationship Center at the phone number shown in the Customer Assistance section of this owner’s manual.
