Under hood overview

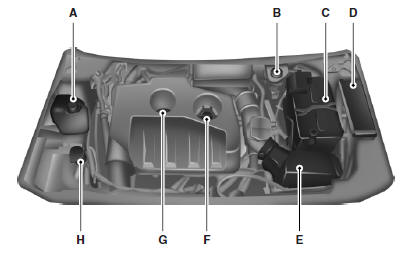

2.0L EcoBoost® Engine

A. Engine coolant reservoir

A. Engine coolant reservoir
B. Brake fluid reservoir
C. Battery
D. Power distribution box
E. Air filter assembly
F. Engine oil filler cap
G. Engine oil dipstick
H. Windshield washer fluid reservoir

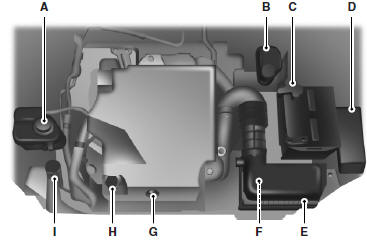

3.5L V6 Engine

A. Engine coolant reservoir

A. Engine coolant reservoir
B. Brake fluid reservoir
C. Battery
D. Power distribution box
E. Air filter assembly
F. Transmission fluid dipstick (out of view)
G. Engine oil dipstick
H. Engine oil filler cap
I. Windshield washer fluid reservoir

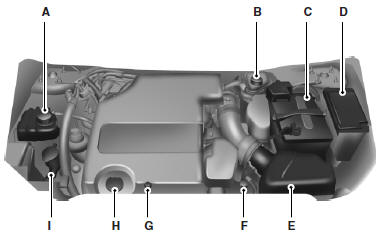

3.5L V6 EcoBoost® Engine

A. Engine coolant reservoir

A. Engine coolant reservoir
B. Brake fluid reservoir
C. Battery
D. Power distribution box
E. Air filter assembly
F. Automatic transmission fluid dipstick (out of view)
G. Engine oil dipstick
H. Engine oil filler cap
I. Windshield washer fluid reservoir

Engine shield

Some vehicles may be equipped with an aero-shield under the engine.

Some vehicles may be equipped with an aero-shield under the engine.

This shield needs to be removed for service, including oil and filter changes. It is secured with four quick release fasteners.
