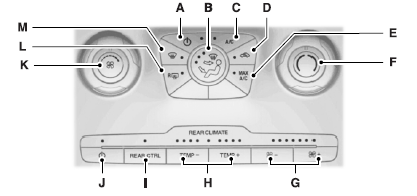

Manual heating and air conditioning

A. Power: Press to turn the system off and on. When the system is off, outside air cannot enter the vehicle.
B. Air distribution control: Press to set the air distribution to a position listed below:

Distributes air through the windshield defroster vents, demister vents and floor vents.

Distributes air through the instrument panel vents.

Distributes air through the instrument panel vents, floor vents, and demister vents.

Distributes air through the floor vents.

C. A/C: Press to turn air conditioning off and on. Air conditioning cools the vehicle using outside air. To improve air conditioning when starting your vehicle, drive with the windows slightly open for two to three minutes.
D. Recirculated air: Press to switch between outside air and recirculated air. When the LED on the button is lit, the air currently in the passenger compartment is being recirculated. Using recirculated air can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle.
E. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This position is more economical and efficient than normal A/C.
F. Front temperature control: Controls the temperature of the air circulated in the front of your vehicle. Turn to select the desired temperature.
G. Rear fan speed control: Controls the volume of air circulated in the rear your vehicle. Press + or - to select the desired fan speed.

H. Rear temperature control: Controls the temperature of the air circulated in the rear of your vehicle. Press TEMP + and TEMP - to select the desired temperature.
I. REAR CTRL: Press to change control of the rear climate controls system from the front controls to the rear controls.
J. Rear climate control system power: Press to turn the rear climate control system off and on.
K. Front fan speed control: Controls the volume of air circulated in your vehicle. Turn to select the desired fan speed or switch off. If you switch the fan off, the windshield may fog up.
L. Rear defrost: Turns the heated windows and mirrors off and on.

See Heated windows and mirrors later in this chapter for more information.
M. Defrost: Distributes air through the windshield defroster vents and demister vents. This setting can also
