Climate Control

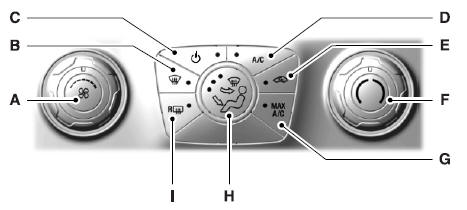

Manual heating and air conditioning
A. Fan speed control: Controls the volume of air circulated in your vehicle.
Turn to select the desired fan speed or switch off. If you switch the fan off, the
windshield may fog up.
B. Defrost: Distributes air through the windshield defroster vents and demister
vents. This setting can also be used to defog and clear the windshield of a thin
covering of ice.
C. Power: Press to turn the system off and on. When the system is off, outside
air cannot enter the vehicle.
D. A/C: Press to turn air conditioning off and on. Air conditioning cools
the vehicle using outside air. To improve air conditioning when starting your vehicle,
drive with the windows slightly open for two to three minutes.
E. Recirculated air: Press to switch between outside air and recirculated
air. When the LED on the button is lit, the air currently in the passenger compartment
is being recirculated. Using recirculated air can reduce the time needed to cool
the interior and reduce unwanted odors from entering your vehicle.
F. Temperature control: Controls the temperature of the air circulated in
your vehicle. Turn to select the desired temperature.
G. MAX A/C: Distributes recirculated air through the instrument panel vents
to cool the vehicle. This position is more economical and efficient than normal
A/C.
H. Air distribution control: Press to set the air distribution to a position listed below:
Distributes air through the windshield defroster vents, demister vents and floor vents.
Distributes air through the instrument panel vents.
Distributes air through the instrument panel vents, floor vents, and demister vents.
Distributes air through the floor vents.
I. Rear defrost: Turns the heated windows and mirrors off and on. See Heated windows and mirrors later in this chapter for more information.
- Dual automatic temperature control
- Dual automatic temperature control system (with sony® audio system)
- Rear window defroster
- Cabin air filter
