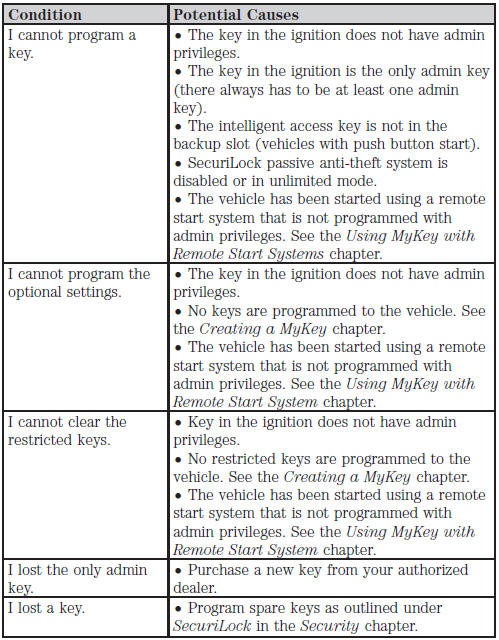

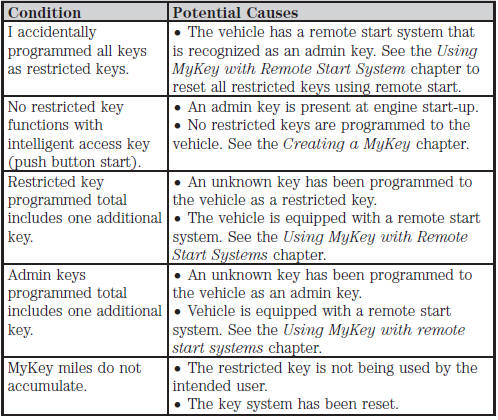

Troubleshooting, MyKey


See also:
Instrument Cluster
Gauges
Type 1
Cluster shown in standard measure – metric clusters similar.
A. Tachometer
B. Information display. See Information displays for more information.
C. Speedometer
D. Fuel gauge
...
Perchlorate material
Certain components of this vehicle such as airbag modules, seat belt pretensioners,
and button cell batteries may contain Perchlorate Material – Special handling may
apply for service or vehicle ...
Identifying components in the engine compartment
2.5L I4 engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Automatic transmission dipstick (if equipped)
4. Brake/Clutch fluid reservoir
5. Air filter assembly
6. Power distribut ...
