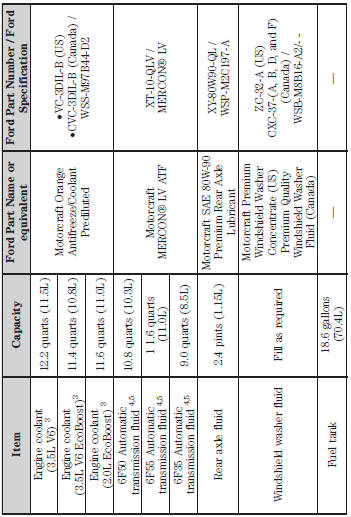

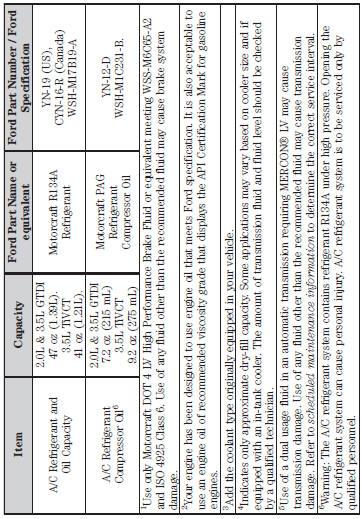

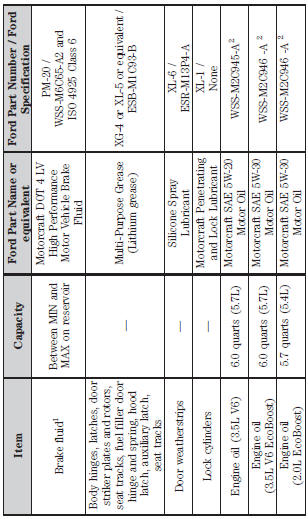

Capacities and Specifications

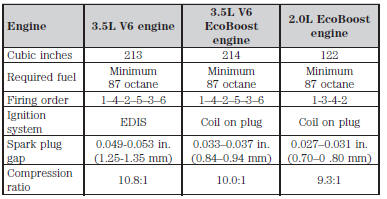

Engine specifications

Engine Drivebelt Routing

Engine Drivebelt Routing

3.5L / 3.5L V6 EcoBoost engines

2.0L EcoBoost engine (if equipped with drivebelt routing 1)

2.0L EcoBoost engine (if equipped with drivebelt routing 1)

2.0L EcoBoost engine (if equipped with drivebelt routing 2)

2.0L EcoBoost engine (if equipped with drivebelt routing 2)

A. Long drivebelt on the first pulley groove closer to the engine

A. Long drivebelt on the first pulley groove closer to the engine
B. Short drivebelt on the second pulley groove farther from the engine

TECHNICAL SPECIFICATIONS

Part numbers
